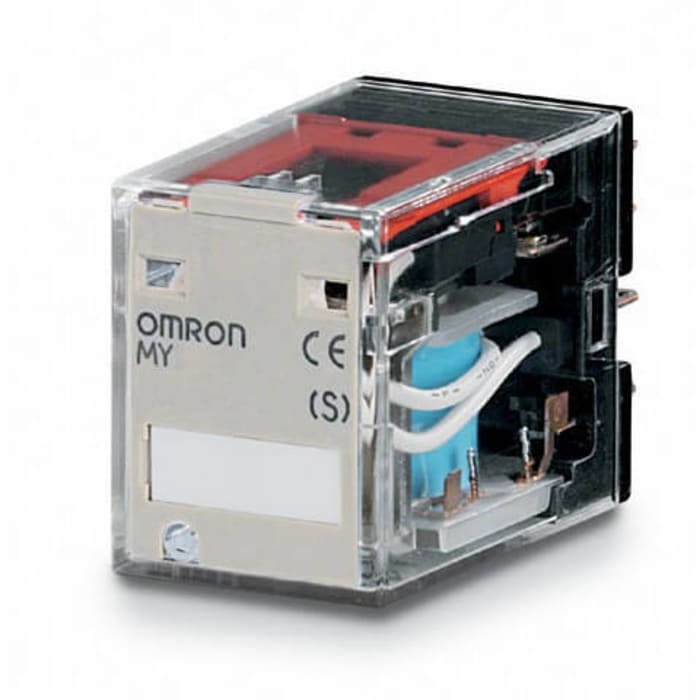

Omron DIN Rail Power Relay, 24V dc Coil, 10A Switching Current, DPDT
Technical documents
Specifications
Brand
OmronProduct Type
Power Relay
Coil Voltage
24V dc
Contact Configuration
DPDT
Mount Type
DIN Rail
Series
MY
Terminal Type
Plug-In
Switching Current
10A
Switching AC Voltage
30V ac
Switching DC Voltage
30V dc
Minimum Operating Temperature
-55°C
Coil Resistance
636Ω
Maximum Operating Temperature
60°C
Height
36mm
Coil Power
900mW
Length
28mm
Standards/Approvals
LR, RoHS, UL, VDE, CE, CSA
Width
21.5mm
Contact Material
Silver Alloy
Contact Resistance
100mΩ
Country of Origin
Japan
Product details
MY Series
Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm
Approvals
VDE, UL, CSA
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 69.15
₪ 69.15 Each (ex VAT)
₪ 80.91
₪ 80.91 Each (inc. VAT)
1
₪ 69.15
₪ 69.15 Each (ex VAT)
₪ 80.91
₪ 80.91 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 4 | ₪ 69.15 |
| 5 - 9 | ₪ 67.95 |
| 10+ | ₪ 66.09 |
