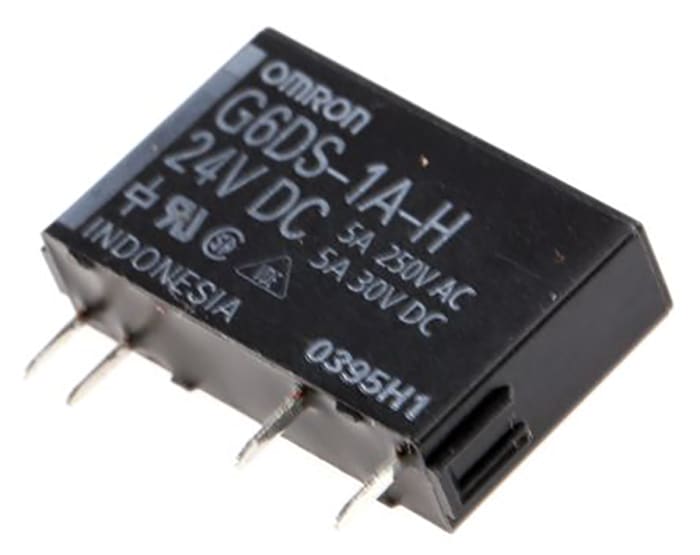

Omron PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPST
Technical documents
Specifications
Brand
OmronCoil Voltage
24V dc
Contact Configuration
SPST
Mounting Type
PCB Mount
Switching Current
5A
Number of Poles
1
Latching
No
Terminal Type
Through Hole
Length
18.5mm
Coil Resistance
2880Ω
Height
12.5mm
Series
G6D
Depth
6.5mm
Contact Material
Silver
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Maximum Switching Power DC
150 W
Maximum Switching Power AC
1.25 kVA
Application
Power
Country of Origin
Malaysia
Product details
G6D Series
Slim footprint width of 6.5mm. Adjacent relays may be mounted on 6.5mm pitch
Fully sealed construction
Switching Voltage: 30Vdc; 250Vac
Contact Resistance: 100mΩ
Surge withstand capability of 6kV
Mechanical Life: 2 x 107
H12.5, W17.5, D6.5mm
Approvals
UL recognised; CSA certified
