Technical Documents
Specifications
Brand
OmronProduct Type

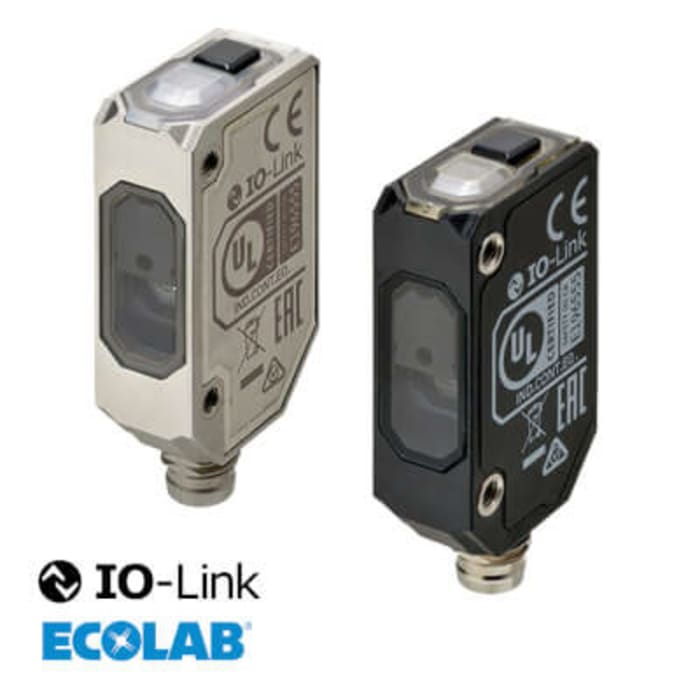

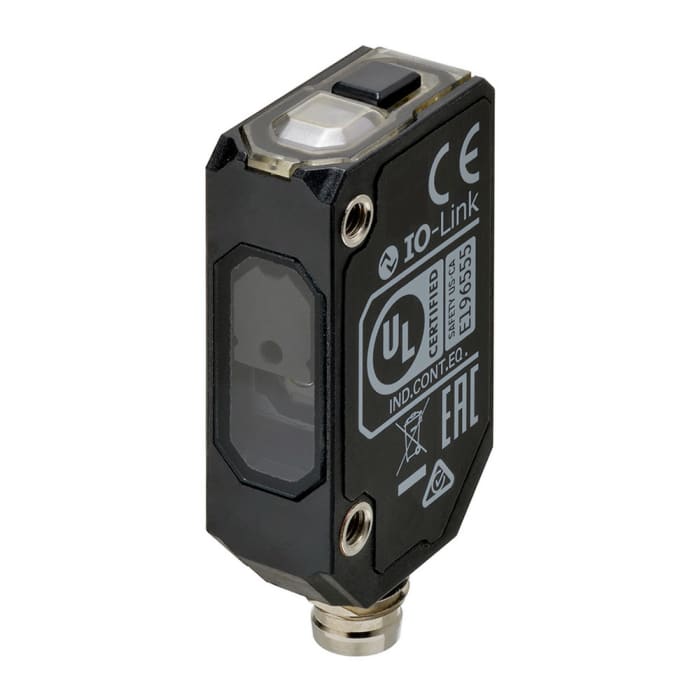

Photoelectric Sensor
Sensor Style
Compact
Detection Type
Diffuse
Output Type
PNP
Terminal Type
M8 Connector
Interface Type
IO-Link
Maximum DC Voltage
30V dc
Light Source
Infrared
IP Rating
IP67G, IP69K, IP67
Minimum Operating Temperature
-20°C
Maximum Current
30mA
Maximum Operating Temperature
55°C
Standards/Approvals
No
Response Time
150ms
Series
E3AS-F
Housing Material
PBT
Hazardous Area Certification
No
Detection Range
50 mm → 1.5m
Country of Origin
China
