Technical Documents
Specifications
Brand
OmronThread Size
M18
Product Type

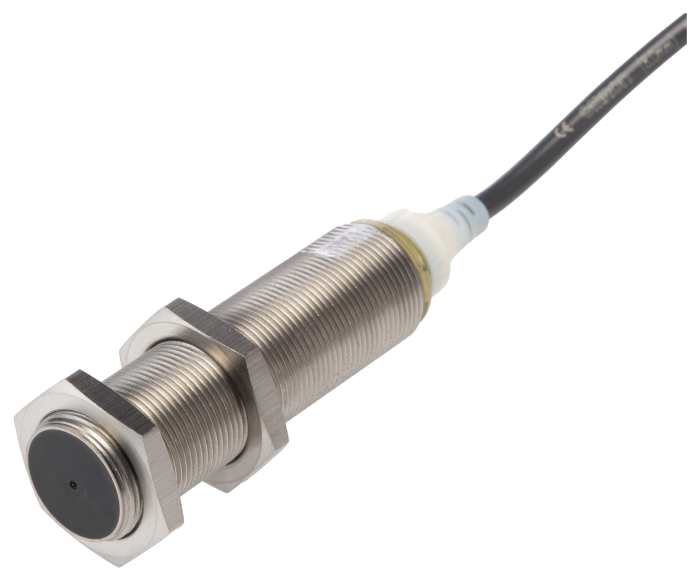

Inductive Proximity Sensor
Body Style
Threaded Barrel
IP Rating
IP67
Length
81.5mm
Mount Type
Flush
Terminal Type
Pre-Cabled
Housing Material
Stainless Steel
Width
24mm
Maximum Supply Voltage
32V
Materials Detected
Ferrous Metal
Maximum Detection
30mm
Minimum Operating Temperature
-40°C
Maximum DC Voltage
32V dc
Maximum Operating Temperature
70°C
Standards/Approvals
IEC60529:IP67, EN60947-5-2:EMC
Switching Current
200mA
Output Type
PNP
Maximum AC Voltage
240V ac
Maximum Switching Frequency
500Hz
Shielding
Shielded
Series
E2A
Product Details
Stock information temporarily unavailable.
₪ 498.30
₪ 498.30 Each (ex VAT)
₪ 583.01
₪ 583.01 Each (inc. VAT)
1
₪ 498.30
₪ 498.30 Each (ex VAT)
₪ 583.01
₪ 583.01 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 2 | ₪ 498.30 |
| 3+ | ₪ 485.68 |
