Technical Documents
Specifications
Brand
OmronThread Size
M12
Product Type

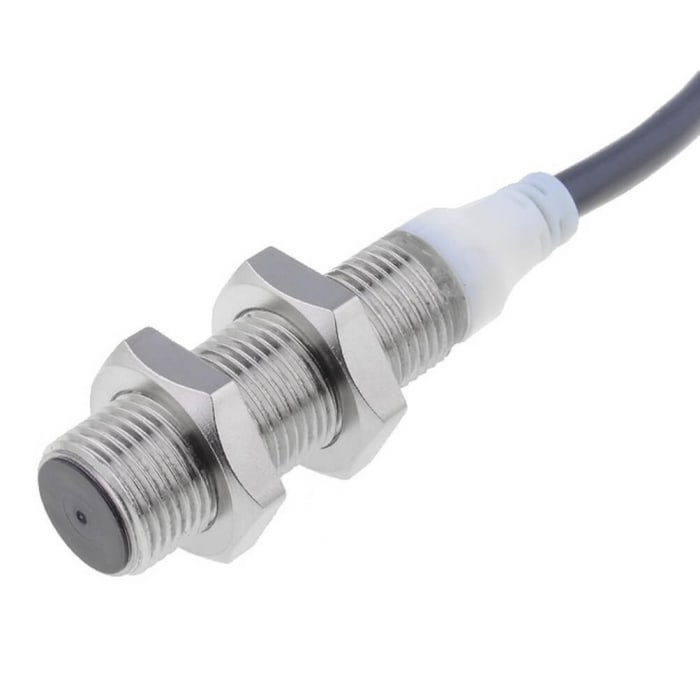

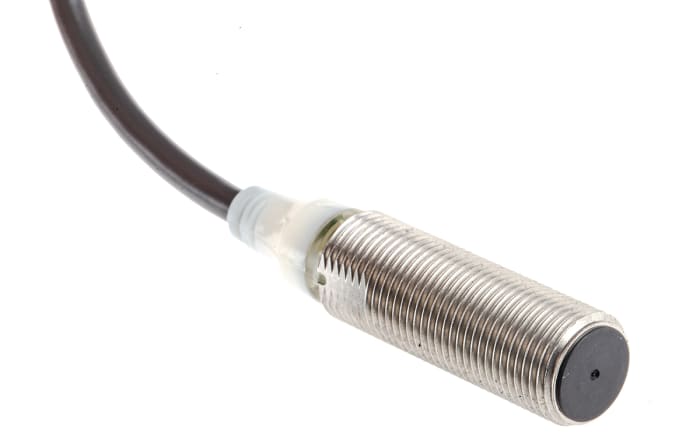

Inductive Proximity Sensor
Body Style
Threaded Barrel
IP Rating
IP67
Length
2m
Mount Type
Flush
Terminal Type
Pre-Cabled
Maximum Supply Voltage
32V
Housing Material
Stainless Steel
Width
17mm
Materials Detected
Ferrous Metal
Maximum Detection
30mm
Minimum Operating Temperature
-40°C
Maximum DC Voltage
32V dc
Maximum Operating Temperature
70°C
Standards/Approvals
IP69k After DIN 40050, IP67 after IEC 60529, EMC after EN60947-5-2
Switching Current
200mA
Output Type
PNP
Maximum AC Voltage
1000V ac
Maximum Switching Frequency
1kHz
Shielding
Shielded
Series
E2A
Country of Origin
China
Product Details
Stock information temporarily unavailable.
₪ 463.42
₪ 463.42 Each (ex VAT)
₪ 542.20
₪ 542.20 Each (inc. VAT)
1
₪ 463.42
₪ 463.42 Each (ex VAT)
₪ 542.20
₪ 542.20 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 2 | ₪ 463.42 |
| 3+ | ₪ 451.70 |
