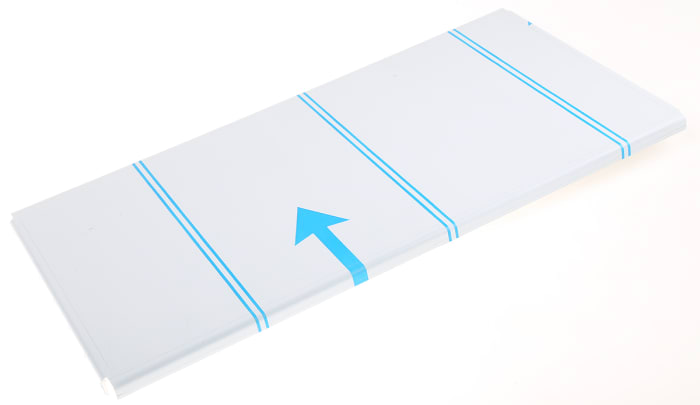

nVent SCHROFF Aluminium Mounting Plate, 403 x 270 x 12mm

RS Stock No.: 259-9136Brand: nVent SCHROFFManufacturers Part No.: 20860109Distrelec Article No.: 15247333
brand-logo
View all in Rack Panels

Technical documents

Specifications

Brand

nVent Schroff

Type

Mounting Plate

Material

Aluminium

Dimensions

403 x 270 x 12mm

Country of Origin

Germany

Product details

Chassis plate

A Schroff Multipac mounting plate designed for the mounting of heavy components, e.g. transformers.

Bolted laterally inside on a 19in. chassis
RoHS compliant
2mm aluminium chassis plate

Supplied with

1 x mounting plate, 4 x threaded insert M3, 1 x assembly kit.
