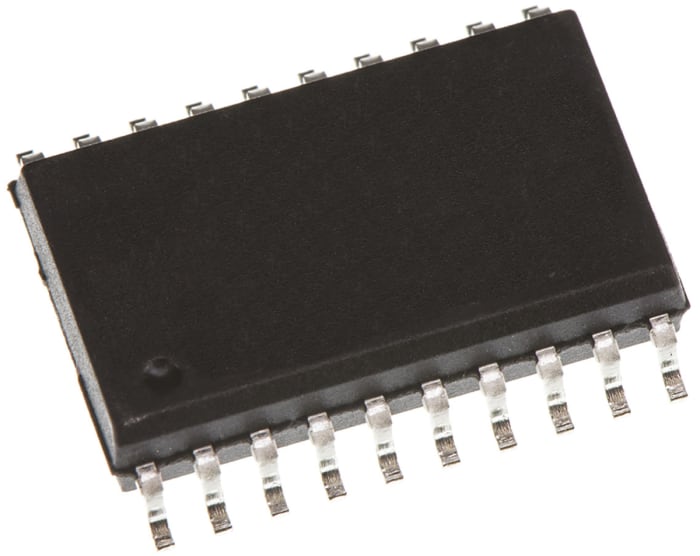

Nexperia Octal D Type Latch, 8-Bit Non-Inverting, 20-Pin SO
Technical documents
Specifications
Brand
NexperiaLogic Family
74HCT
Product Type
Octal D Type Latch
Logic Function
D Type
Number of Channels
8
Polarity
Non-Inverting
Mount Type
Surface
Package Type
SO
Minimum Supply Voltage
4.5V
Pin Count
20
Maximum Supply Voltage
5.5V
Input Level
TTL
Maximum Propagation Delay Time @ CL
45ns
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
125°C
Width
7.6 mm
Height
2.45mm
Length
13mm
Standards/Approvals
No
Series
74HCT
Automotive Standard
No
Output Type
3 State
Country of Origin
China
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 3,210.00
₪ 1.605 Each (On a Reel of 2000) (ex VAT)
₪ 3,755.70
₪ 1.878 Each (On a Reel of 2000) (inc. VAT)
2000
₪ 3,210.00
₪ 1.605 Each (On a Reel of 2000) (ex VAT)
₪ 3,755.70
₪ 1.878 Each (On a Reel of 2000) (inc. VAT)
Stock information temporarily unavailable.
2000
| quantity | Unit price | Per Reel |
|---|---|---|
| 2000 - 4000 | ₪ 1.605 | ₪ 3,210.00 |
| 6000+ | ₪ 1.56 | ₪ 3,120.00 |
