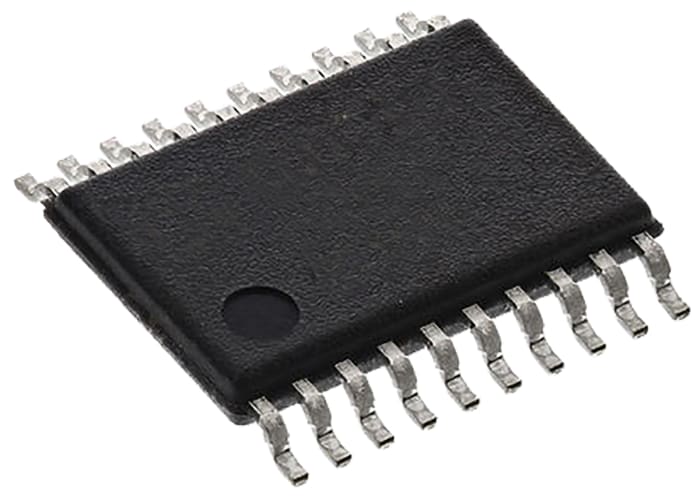

Nexperia 74HC541PW,118 Octal-Channel Buffer & Line Driver, 3-State, 20-Pin TSSOP
Technical documents
Specifications
Brand
NexperiaLogic Family
74HC
Number of Channels per Chip
8
IC Type
Octal Buffer & Line Driver IC
Input Type
CMOS
Output Type
3 State
Polarity
Non-Inverting
Mounting Type
Surface Mount
Package Type
TSSOP
Pin Count
20
Maximum High Level Output Current
-7.8mA
Maximum Low Level Output Current
7.8mA
Maximum Propagation Delay Time @ Maximum CL
175 ns @ 50 pF
Dimensions
6.6 x 4.5 x 0.95mm
Maximum Operating Supply Voltage
6 V
Minimum Operating Supply Voltage
2 V
Propagation Delay Test Condition
50pF
Country of Origin
China
₪ 2,887.50
₪ 1.155 Each (On a Reel of 2500) (ex VAT)
₪ 3,378.38
₪ 1.351 Each (On a Reel of 2500) (inc. VAT)
2500
₪ 2,887.50
₪ 1.155 Each (On a Reel of 2500) (ex VAT)
₪ 3,378.38
₪ 1.351 Each (On a Reel of 2500) (inc. VAT)
Stock information temporarily unavailable.
2500
Stock information temporarily unavailable.
| quantity | Unit price | Per Reel |
|---|---|---|
| 2500 - 2500 | ₪ 1.155 | ₪ 2,887.50 |
| 5000 - 10000 | ₪ 1.095 | ₪ 2,737.50 |
| 12500 - 22500 | ₪ 1.065 | ₪ 2,662.50 |
| 25000+ | ₪ 0.96 | ₪ 2,400.00 |
