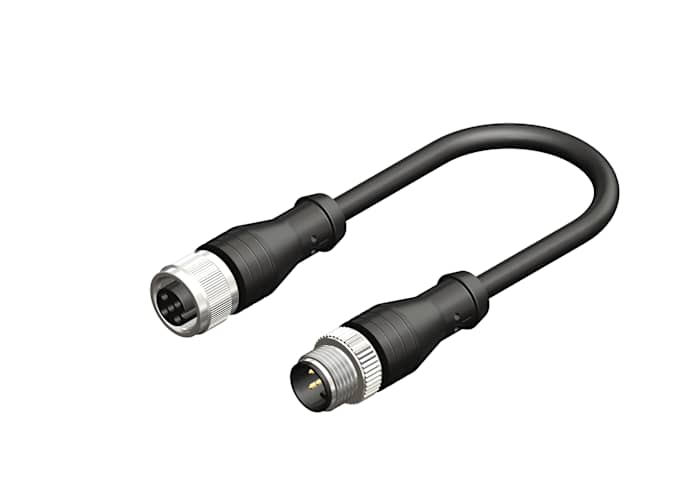

Molex Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 2m
Technical documents
Specifications
Brand
MolexSeries
120066
Cross Sectional Area
0.34 mm²
Sheath Material
TPU
Length
2m
Sheath Colour
Black
Connector 1 Gender
Female
Connector 1
M12
Connector 1 Number of Contacts
5
Connector 2 Housing Gender
Male
Connector 2
M12
Connector 2 Gender
Male
Connector 2 Orientation
Straight
Connector 2 Number of Contacts
5
Shielded/Unshielded
Unshielded
Current Rating
4 A
Voltage Rating
60 V
IP Rating
IP67
Outer Diameter
5.5mm
American Wire Gauge
22 AWG
Operating Temperature Range
-25 → +85 °C
Connector 1 Housing Gender
Female
Minimum Operating Temperature
-25°C
Cable Shape
Multicore
Standards Met
CSA, UL 2125
Maximum Operating Temperature
+85°C
Conductor Material
Brass
Country of Origin
Poland
Product details
Molex M12 WSOR Sensor Cable
From Molex, this Micro-Change cable assembly is designed to be resistant to Weld-Slag and Oil, and as such is well suited to industrial use. With a secure M12 connector, this WSOR cable assembly is a versatile and reliable solution to sensor and automation connection applications, and boasts an impressive degree of environmental protection when mated.
Features and Benefits:
• Knurled hex nut connection
• Weld-slag and Oil resistant
• Unshielded cable
• Gold plated brass contacts
BRAD - M12
₪ 106.05
₪ 106.05 Each (ex VAT)
₪ 124.08
₪ 124.08 Each (inc. VAT)
1
₪ 106.05
₪ 106.05 Each (ex VAT)
₪ 124.08
₪ 124.08 Each (inc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
| quantity | Unit price |
|---|---|
| 1 - 4 | ₪ 106.05 |
| 5 - 9 | ₪ 102.33 |
| 10+ | ₪ 98.42 |
