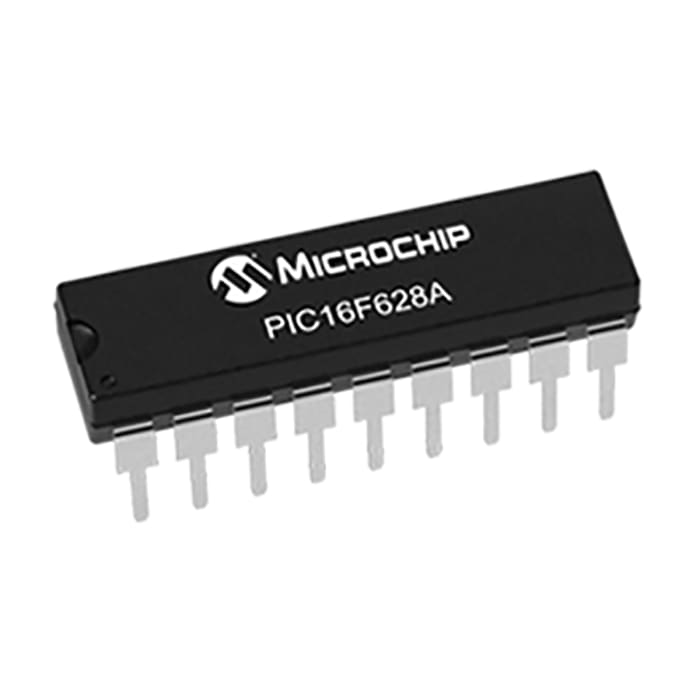

Microchip PIC16F628A-I/P, 8bit PIC Microcontroller, PIC16F, 20MHz, 2048 x 14 words, 128 B Flash, 18-Pin PDIP

RS Stock No.: 623-0291PBrand: MicrochipManufacturers Part No.: PIC16F628A-I/P
brand-logo
View all in Microcontrollers

Technical documents

Specifications

Brand

Microchip

Family Name

PIC16F

Package Type

PDIP

Mounting Type

Through Hole

Pin Count

18

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

2048 x 14 words, 128 B

Maximum Frequency

20MHz

RAM Size

224 B

USB Channels

0

Number of PWM Units

1

Number of SPI Channels

0

Number of USART Channels

1

Number of UART Channels

0

Number of I2C Channels

0

Typical Operating Supply Voltage

3 to 5.5 V

Number of CAN Channels

0

Maximum Operating Temperature

+85 °C

Length

23.37mm

Width

0.28in

Pulse Width Modulation

1(10 bit) (CCP)

Minimum Operating Temperature

-40 °C

Height

4.95mm

Number of LIN Channels

0

Dimensions

0.92 x 0.28 x 0.195in

Program Memory Type

Flash

Number of Ethernet Channels

0

Number of PCI Channels

0

Instruction Set Architecture

RISC
