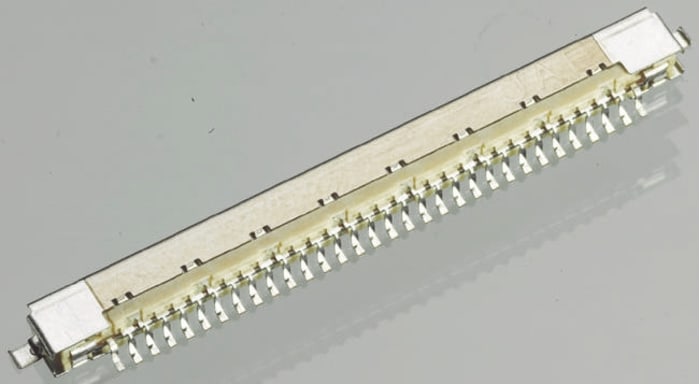

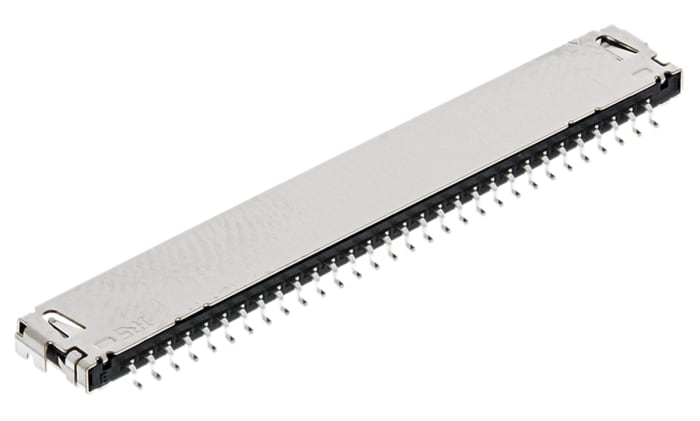

JAE FI-X Series Right Angle Surface Mount PCB Socket, 30-Contact, 1-Row, 1mm Pitch, Solder Termination
Technical documents
Specifications
Brand
JAENumber Of Contacts
30
Number Of Rows
1
Pitch
1mm
Type
Wire to Board
Mounting Type
Surface Mount
Body Orientation
Right Angle
Termination Method
Solder
Current Rating
12A
Voltage Rating
200 V
Series
FI-X
Contact Material
Copper
Product details
90° LVDS Header
LVDS Range
The FI family are designed for board to cable applications with the electrical performance to support transmissions of Low Voltage Differential Signalling (LVDS) As products increasingly incorporate digital technology the FI family meets the internal signal needs for products as LCD, PDP, Rear Projection and other equipment utilizing LVDS.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
₪ 294.82
₪ 58.965 Each (In a Pack of 5) (ex VAT)
₪ 344.94
₪ 68.989 Each (In a Pack of 5) (inc. VAT)
5
₪ 294.82
₪ 58.965 Each (In a Pack of 5) (ex VAT)
₪ 344.94
₪ 68.989 Each (In a Pack of 5) (inc. VAT)
5
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 95 | ₪ 58.965 | ₪ 294.82 |
| 100 - 370 | ₪ 42.765 | ₪ 213.82 |
| 375 - 1495 | ₪ 41.205 | ₪ 206.02 |
| 1500 - 2995 | ₪ 39.75 | ₪ 198.75 |
| 3000+ | ₪ 38.31 | ₪ 191.55 |
