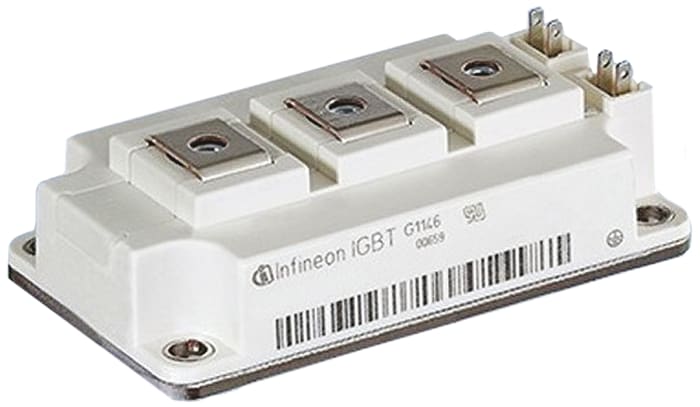

Infineon BSM150GB120DN2 Series IGBT Module, 210 A 1200 V, 7-Pin 62MM Module, Screw Mount
Technical documents
Specifications
Brand
InfineonMaximum Continuous Collector Current
210 A
Maximum Collector Emitter Voltage
1200 V
Maximum Gate Emitter Voltage
±20V
Maximum Power Dissipation
1.25 kW
Package Type
62MM Module
Configuration
Series
Mounting Type
Screw Mount
Pin Count
7
Dimensions
106.4 x 61.4 x 30.5mm
Maximum Operating Temperature
+150 °C
