Technical Documents
Specifications
Brand
ifm electronicThread Size
M18 x 1
Product Type

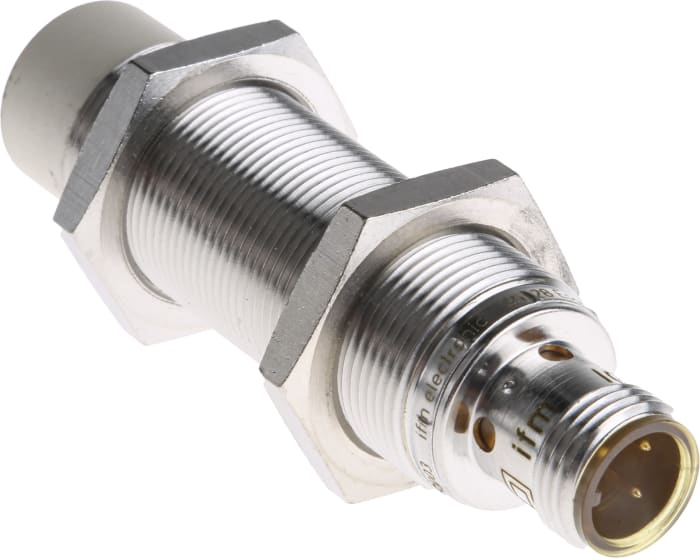

Inductive Proximity Sensor
Body Style
Threaded Barrel
Length
72mm
IP Rating
IP67
Terminal Type
M12 Connector
Mount Type
Non-Flush
Housing Material
Bronze Plated Brass
Width
18mm
Maximum Supply Voltage
3V
Maximum DC Voltage
36V dc
Maximum Detection
12mm
Materials Detected
Metal
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
80°C
Standards/Approvals
EN 61000-4-4, EN 61000-4-3, EN 55011, UL Approval No. A004, File number UL E174191, EN 61000-4-6, EN 61000-4-2
Output Type
PNP
Maximum Switching Frequency
300Hz
Shielding
Unshielded
Switching Current
250mA
Country of Origin
Germany
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
₪ 402.52
₪ 402.52 Each (ex VAT)
₪ 470.95
₪ 470.95 Each (inc. VAT)
1
₪ 402.52
₪ 402.52 Each (ex VAT)
₪ 470.95
₪ 470.95 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 4 | ₪ 402.52 |
| 5+ | ₪ 392.13 |
