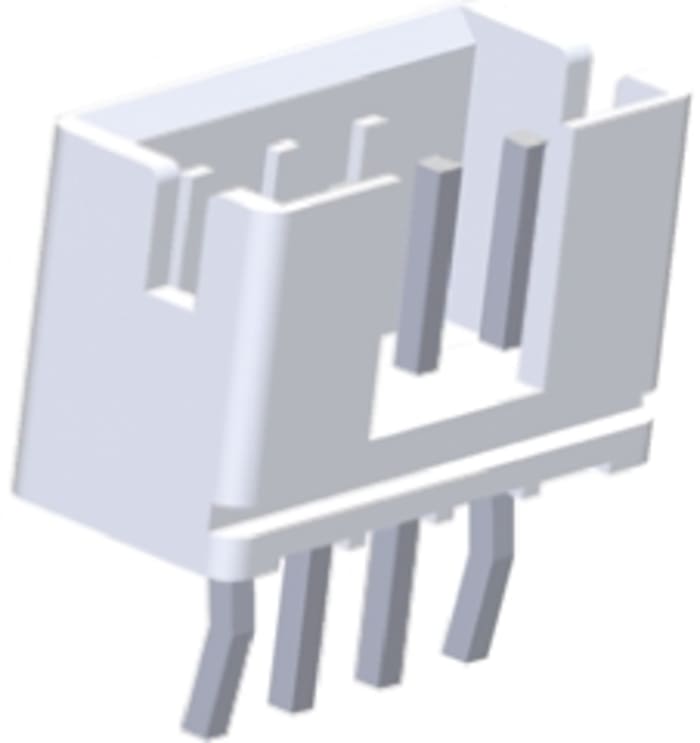

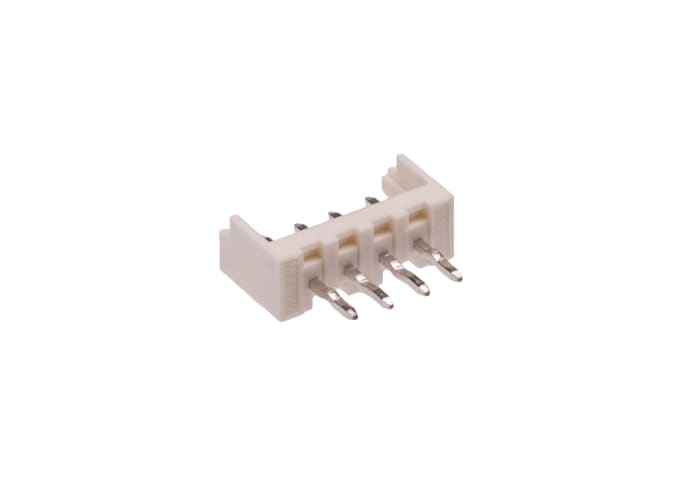

Hirose DF3 Series Straight Through Hole PCB Header, 4 Contact(s), 2 mm Pitch, 1 Row, Shrouded
Technical documents
Specifications
Brand
HiroseSeries
DF3
Product Type
PCB Header
Pitch
2mm
Current
3A
Number of Contacts
4
Housing Material
Polyamide
Number of Rows
1
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Board-to-Board, Wire-to-Board
Mount Type
Through Hole
Contact Material
Copper Alloy
Contact Plating
Tin
Minimum Operating Temperature
-30°C
Row Pitch
2mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
85°C
Standards/Approvals
No
Voltage
250 V
Country of Origin
Japan
Product details
Hirose DF3 Series 2 mm Pitch Through Hole PCB Mount Pin Header Connectors
DF3 series 2 mm pitch through hole PCB mount pin header connectors. These DF3 series 2 mm pitch pin headers are available as vertical or right angle mount and with tin plated or gold plated (part numbers suffixed with (01) contacts.
Board Through-hole diameter 0.8 mm
2.0mm Single-Row Connector - Hirose DF3
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 13.35
₪ 1.335 Each (In a Pack of 10) (ex VAT)
₪ 15.62
₪ 1.562 Each (In a Pack of 10) (inc. VAT)
Standard
10
₪ 13.35
₪ 1.335 Each (In a Pack of 10) (ex VAT)
₪ 15.62
₪ 1.562 Each (In a Pack of 10) (inc. VAT)
Stock information temporarily unavailable.
Standard
10
| quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 90 | ₪ 1.335 | ₪ 13.35 |
| 100 - 490 | ₪ 1.05 | ₪ 10.50 |
| 500 - 990 | ₪ 1.005 | ₪ 10.05 |
| 1000 - 4990 | ₪ 0.87 | ₪ 8.70 |
| 5000+ | ₪ 0.765 | ₪ 7.65 |
