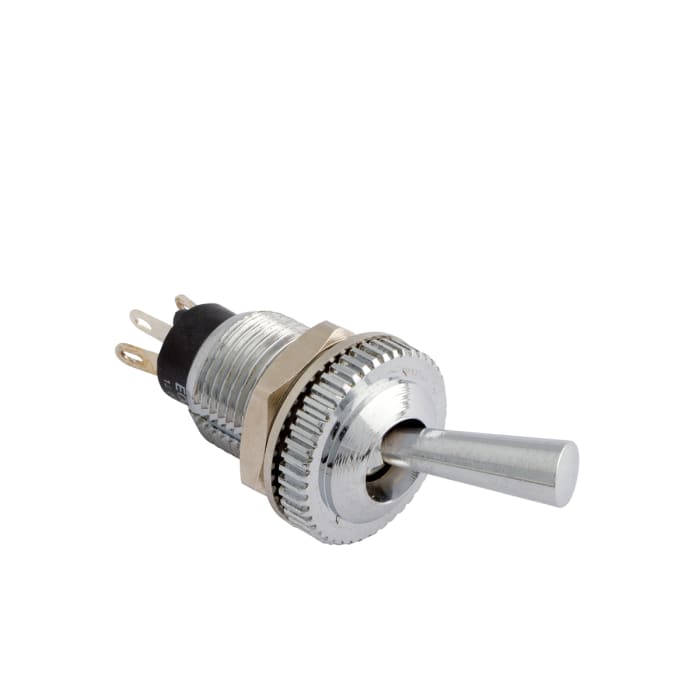

EOZ Toggle Switch, Panel Mount, On-On, CO, Solder Terminal, 48 V dc, 220 V ac

RS Stock No.: 913-1645Brand: EOZManufacturers Part No.: 12.17273.22
brand-logo
View all in Toggle Switches

Technical documents

Specifications

Brand

EOZ

Product Type

Toggle Switch

Contact Configuration

CO

Switch Operation

On-On

Switch Contact Current

4.5A

Mount Type

Panel

Terminal Type

Solder

IP Rating

IP67, IP65

Panel Cutout Size

10.2 mm

Actuator Length

10.9mm

Minimum Operating Temperature

-40°C

Contact DC Voltage

48V dc

Contact AC Voltage

220V ac

Actuator Material

Chrome Plated Brass

Maximum Operating Temperature

85°C

Switch Configuration

On-On

Length

17.5mm

Standards/Approvals

RoHS, IEC 60512-4

Series

DJET

Mechanical Life

100000Operations

Country of Origin

France

Product details

DJET miniature switches

Range of lever switches offered in standard and watertight versions.
Quick-breaking (ON-ON) single-pole change-over switch function.
Can be used with peak current.
Excellent resistance to vibrations, shocks and jarring.
Highly stable contact resistance.

Approvals: CECC, NFC, MIL, OTAN, LNZ etc. for the tropical version
