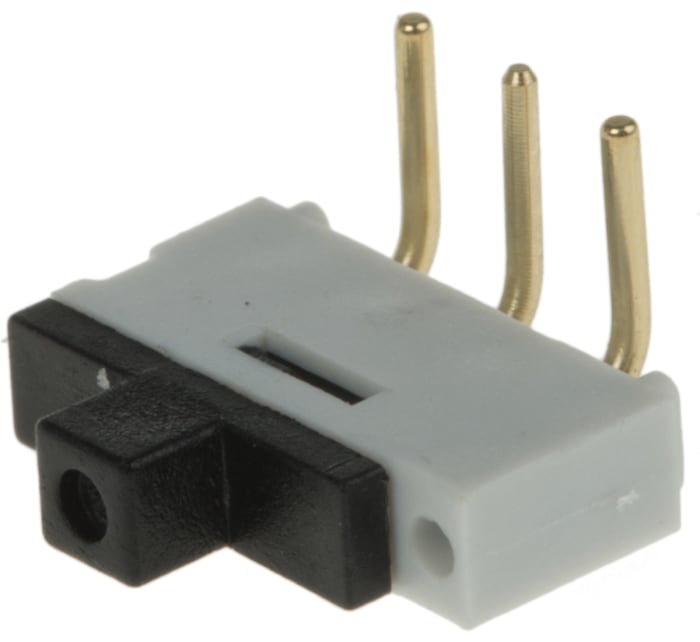

EOZ 2 Way Through Hole SIP Switch SPDT

RS Stock No.: 115-6306Brand: EOZManufacturers Part No.: 09.10201.02
brand-logo
View all in DIP & SIP Switches

Technical documents

Specifications

Brand

EOZ

Number of Positions

2

Mounting Type

Through Hole

Contact Material

Gold Over Nickel Plated

Contact Configuration

SPDT

Package Style

SIP

Actuator Type

Slide

Contact Current Rating

500 mA@ 24 V

Mechanical Life

10000Operations

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Operating Temperature Range

-40 → +85°C

Country of Origin

France

Product details

SIL Slide Switches

Can be stacked at a pitch of 2.54 mm for the straight model
Standard or raised actuator and straight or right-angle mounting versions
Contact resistance: <22mΩ
Operating Temperature -40 to +85°C

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
You may be interested in
2 Way Through Hole SIP Switch SPST
P.O.A.Each (Supplied in a Bag) (ex VAT)
EOZ 2 Way Through Hole SIP Switch SPDT
₪ 9.091Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.

₪ 29.70

₪ 5.94 Each (In a Pack of 5) (ex VAT)

₪ 34.75

₪ 6.95 Each (In a Pack of 5) (inc. VAT)

EOZ 2 Way Through Hole SIP Switch SPDT
Select packaging type

₪ 29.70

₪ 5.94 Each (In a Pack of 5) (ex VAT)

₪ 34.75

₪ 6.95 Each (In a Pack of 5) (inc. VAT)

EOZ 2 Way Through Hole SIP Switch SPDT
Stock information temporarily unavailable.
Select packaging type

Stock information temporarily unavailable.

Please check again later.

quantityUnit pricePer Pack
5 - 245₪ 5.94₪ 29.70
250 - 495₪ 5.775₪ 28.88
500 - 1245₪ 4.335₪ 21.68
1250 - 2495₪ 4.215₪ 21.08
2500+₪ 4.08₪ 20.40
