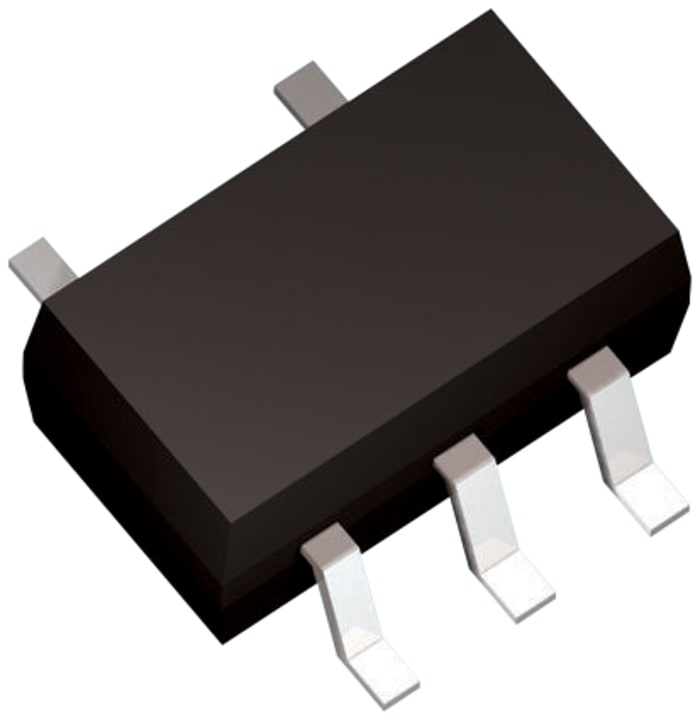

TLV271IW5-7 DiodesZetex, CMOS, Op Amp, RRO, 1.9MHz 10 kHz, 2.7 → 16 V, 5-Pin SOT-25
Technical documents
Specifications
Brand
DiodesZetexAmplifier Type
CMOS
Mounting Type
Surface Mount
Package Type
SOT-25
Power Supply Type
Dual, Single
Number of Channels per Chip
1
Pin Count
5
Typical Single Supply Voltage
2.7 → 16 V
Typical Gain Bandwidth Product
1.9MHz
Typical Dual Supply Voltage
±5V
Typical Slew Rate
2.2V/µs
Maximum Operating Frequency
10 kHz
Maximum Operating Temperature
+125 °C
Minimum Operating Temperature
-40 °C
Rail to Rail
Rail to Rail Output
Typical Voltage Gain
115 dB
Length
3.1mm
Height
1.3mm
Width
1.7mm
Dimensions
3.1 x 1.7 x 1.3mm
Typical Input Voltage Noise Density
35nV/√Hz
Product details
Operational Amplifiers up to 36 V Supply Voltage, Diodes Inc
Diodes operational amplifier range provides Industry standard parts for general purpose applications.
Operational Amplifiers, Diodes Inc
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
₪ 1,080.00
₪ 1.80 Each (Supplied on a Reel) (ex VAT)
₪ 1,263.60
₪ 2.106 Each (Supplied on a Reel) (inc. VAT)
Production pack (Reel)
600
₪ 1,080.00
₪ 1.80 Each (Supplied on a Reel) (ex VAT)
₪ 1,263.60
₪ 2.106 Each (Supplied on a Reel) (inc. VAT)
Stock information temporarily unavailable.
Production pack (Reel)
600
Stock information temporarily unavailable.
| quantity | Unit price | Per Reel |
|---|---|---|
| 600 - 1450 | ₪ 1.80 | ₪ 90.00 |
| 1500+ | ₪ 1.395 | ₪ 69.75 |
