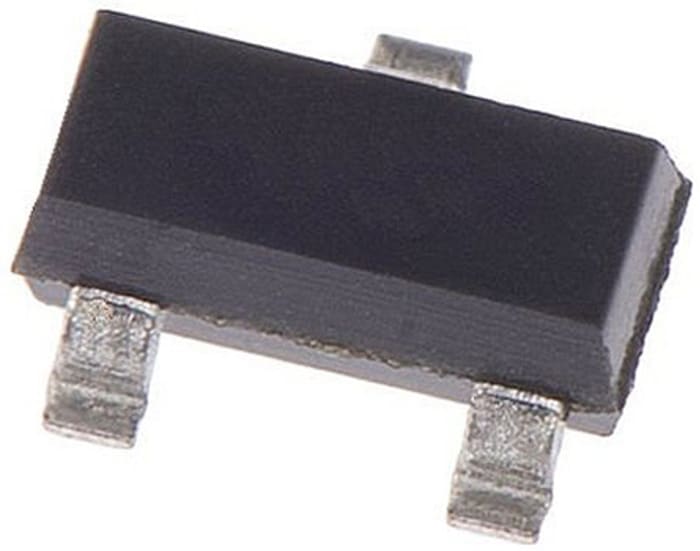

Diodes Inc Dual Switching Diode, Common Cathode, 3-Pin SOT-23 MMBD3004C-7-F
Technical documents
Specifications
Brand
DiodesZetexDiode Configuration
Common Cathode
Mounting Type
Surface Mount
Number of Elements per Chip
2
Package Type
SOT-23
Diode Technology
Silicon Junction
Pin Count
3
Maximum Forward Voltage Drop
1.25V
Minimum Operating Temperature
-65 °C
Maximum Operating Temperature
+150 °C
Length
3mm
Width
1.4mm
Height
3mm
Dimensions
3 x 1.4 x 1mm
Product details
Small Signal Switching Diodes, Diodes Inc
Diodes and Rectifiers, Diodes Inc
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
₪ 67.50
₪ 0.675 Each (In a Pack of 100) (ex VAT)
₪ 78.98
₪ 0.79 Each (In a Pack of 100) (inc. VAT)
Standard
100
₪ 67.50
₪ 0.675 Each (In a Pack of 100) (ex VAT)
₪ 78.98
₪ 0.79 Each (In a Pack of 100) (inc. VAT)
Standard
100
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Pack |
|---|---|---|
| 100 - 400 | ₪ 0.675 | ₪ 67.50 |
| 500 - 900 | ₪ 0.66 | ₪ 66.00 |
| 1000 - 1400 | ₪ 0.465 | ₪ 46.50 |
| 1500 - 2900 | ₪ 0.45 | ₪ 45.00 |
| 3000+ | ₪ 0.36 | ₪ 36.00 |
