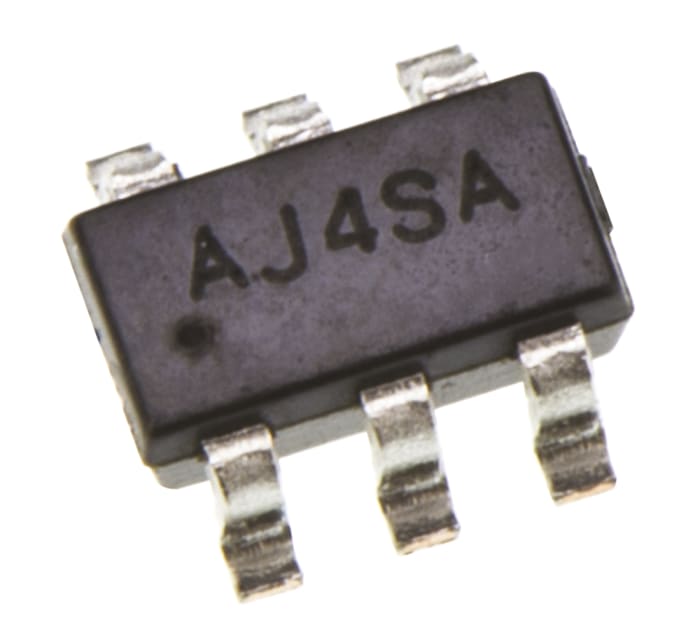

DiodesZetex, AP5100WG-7 DC-DC Converter, 1-Channel 1.2A Adjustable 3-Pin, SOT-26
Technical documents
Specifications
Brand
DiodesZetexMaximum Output Current
1.2A
Maximum Output Voltage
15 V
Regulator Function
Buck Controller
Minimum Output Voltage
0.81 V
Minimum Input Voltage
4.75 V
Maximum Input Voltage
24 V
Output Type
Adjustable
Mounting Type
Surface Mount
Number of Outputs
1
Maximum Switching Frequency
1.4 MHz
Pin Count
3
Package Type
SOT-26
Minimum Operating Temperature
-25 °C
Maximum Operating Temperature
+85 °C
Length
3.1mm
Height
1.3mm
Width
1.7mm
Efficiency
90%
Dimensions
3.1 x 1.7 x 1.3mm
Product details
Step-Down Switching Regulators, Diodes Inc
From DiodesZetez, a range of step-down voltage switching regulators to suit a variety of requirements.
Switching Voltage Regulators, Diodes Inc
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
₪ 43.28
₪ 8.655 Each (In a Pack of 5) (ex VAT)
₪ 50.64
₪ 10.126 Each (In a Pack of 5) (inc. VAT)
Standard
5
₪ 43.28
₪ 8.655 Each (In a Pack of 5) (ex VAT)
₪ 50.64
₪ 10.126 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
Standard
5
Stock information temporarily unavailable.
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 25 | ₪ 8.655 | ₪ 43.28 |
| 30 - 145 | ₪ 7.41 | ₪ 37.05 |
| 150 - 745 | ₪ 5.775 | ₪ 28.88 |
| 750 - 1495 | ₪ 5.265 | ₪ 26.32 |
| 1500+ | ₪ 4.125 | ₪ 20.62 |
