Baumer Inductive Smooth Barrel Proximity Sensor, 3 mm Detection, PNP NO, 6 → 36 V dc
Technical documents
Specifications
Brand
BaumerSensor Technology
Inductive
Body Style
Smooth Barrel
Detection Range
3 mm
Output Function
NO
Digital Switching Output Type
PNP
Cable Length
2m
Connection Type
Pre-Cabled
Supply Voltage
6 → 36 V dc
IP Rating
IP67
Length
40mm
Mounting Type
Flush
Housing Material
Stainless Steel
Maximum dc Voltage
36V
Diameter
6.5 mm
Minimum Operating Temperature
-25°C
Shielding
Shielded
Maximum Switching Frequency
2kHz
Switching Current
100 mA
Reverse Polarity Protection
Yes
Switching Frequency
2 kHz
Standards Met
CE, cULus Listed, EAC
Short Circuit Overload Protection
Yes
Maximum Operating Temperature
+75°C
Country of Origin
Switzerland
Product details

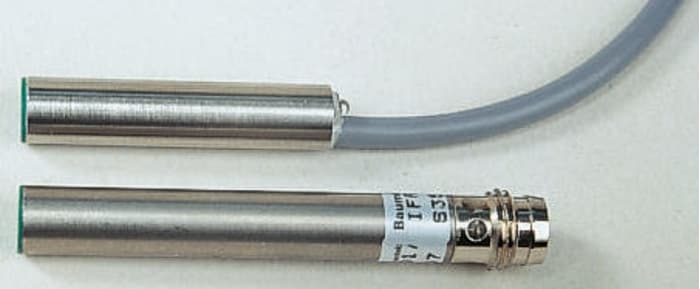

Miniature Detectors Ø 6.5 mm
Inductive detectors for flush-mounting.
PNP output with closure (N/O) by cable or M8 3-point connector (available from the catalogue).
LED operation indication.
Protected against reverse polarity and short circuits.
Smooth Barrel
3-wire flush mounting, stainless steel bodied sensors, protected to IP67 with an operating temperature range of –25 to +75°C. All have short circuit and reverse polarity protection and provide an LED indication of the on/off status.
