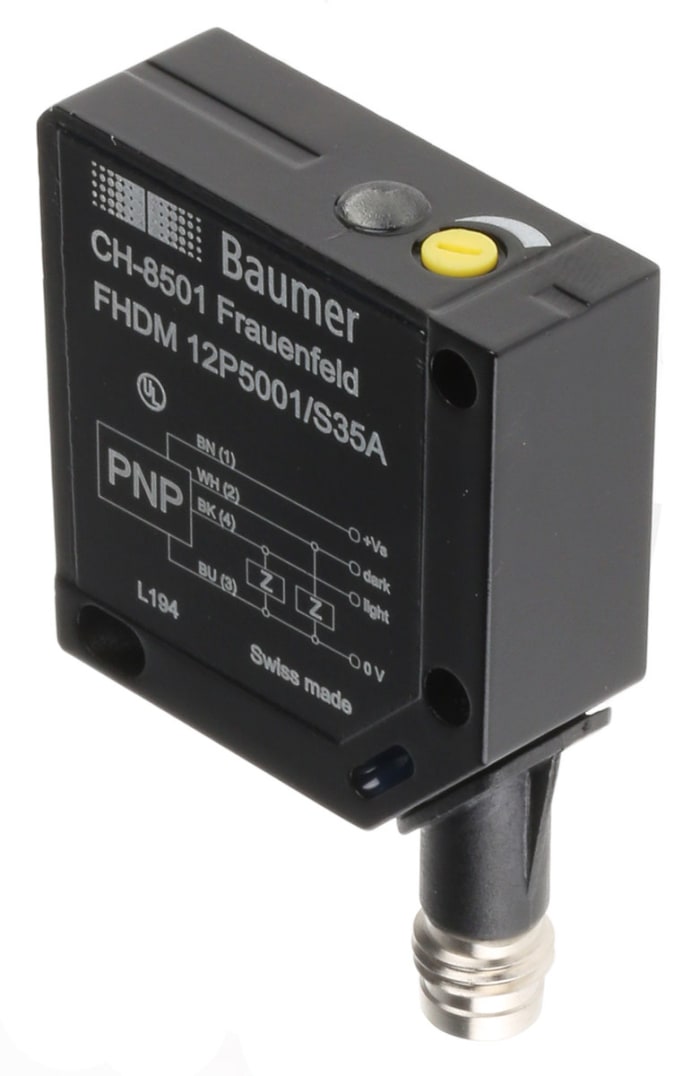

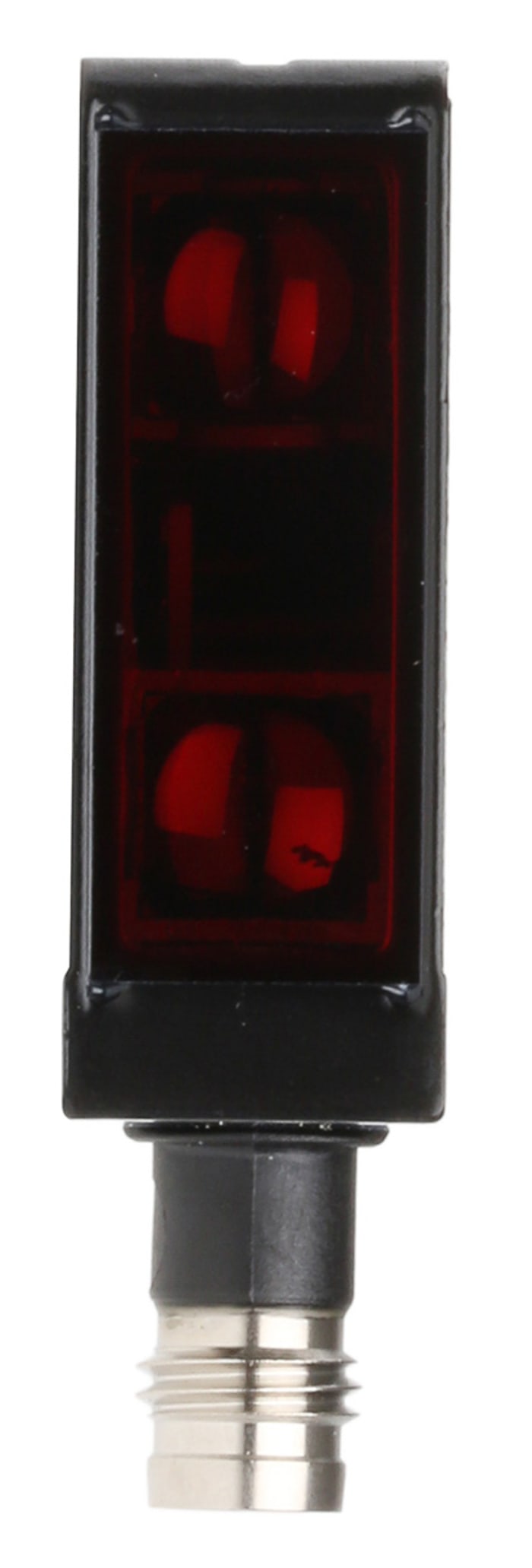

Baumer Diffuse Photoelectric Sensor, Block Sensor, 15 mm → 300 mm Detection Range
Technical documents
Specifications
Brand
BaumerSensor Style
Block
Detection Type
Diffuse
Detection Range
15 mm → 300 mm
Output Type
PNP
Electrical Connection
M8 4 Pin Connector
Maximum dc Voltage
30V
Light Source
LED
IP Rating
IP67
Maximum Current
100 mA
Response Time
<1 ms
Minimum Operating Temperature
-25°C
Series
FHDM 12P
Housing Material
Die Cast Zinc
Maximum Operating Temperature
+65°C
Distrelec Product Id
30078989
Country of Origin
Liechtenstein
Product details
Background suppression cells series 12
Miniature cell for background suppression by triangulation.
Continuously adjustable detection range, adjustment by 5-turn potentiometer.
Visible red light for positioning assistance.
PNP output with light / dark switching.
Robust metal enclosure, connection by M8 connector.
Protected against reverse polarity and short circuits.
Stock information temporarily unavailable.
Please check again later.
₪ 961.35
Each (ex VAT)
₪ 1,124.78
Each (inc. VAT)
1
₪ 961.35
Each (ex VAT)
₪ 1,124.78
Each (inc. VAT)
1
