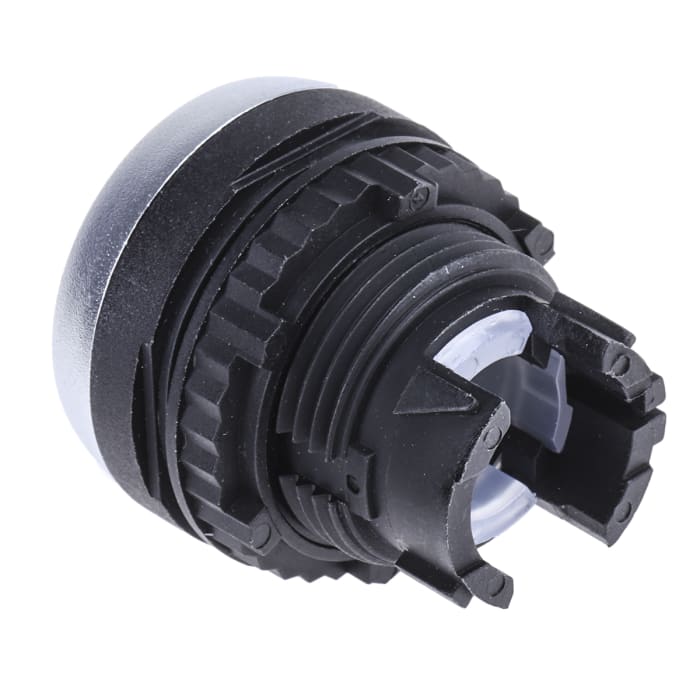

BACO Silver Spring Return Push Button Head, 22 mm Cutout, IP66

Name: BACO Silver Spring Return Push Button Head, 22 mm Cutout, IP66
Brand: BACO
SKU: 0260047
Availability: LimitedAvailability

RS Stock No.: 260-047Brand: BACOManufacturers Part No.: L21AH00

View all in Push Button Heads

Technical Documents

Specifications

Brand

BACO

Product Type

Push Button Head

Series

BACO

Cutout Diameter

22mm

Push Button Colour

Silver

Push Button Shape

Round

Push Button Actuation

Spring Return

Push Button Style

Round Illuminated

Push Button Material

Plastic

IP Rating

IP66

Push Button Marking

Unmarked

Push Button Diameter

22mm

Body/Fixing Collar Included

Standards/Approvals

CCC, UR/UL, UL 508, NEMA ICS-5, IEC 60947-1, EN 60947-5-5, EN 60947-5-4, EN 60947-5-1, EN 60947-1, EN 418, CSA, CE

Hazardous Area Certification

Country of Origin

France

Product Details

Push Button Heads Spring Return

Push button heads are available as separate units to provide maximum flexibility for numerous possible solutions. The push button heads have an integrated anti rotation tab which retracts when it is not required. The insulating material of the head ensures electrical safety and the design of the push button ensures it is clearly visible and ergonomic.

22mm cut out diameter
Spring return, flush
To be used with a clip and electrical contact blocks
Plastic chrome bezel
Equipped with locking ring
IP66 ingress protection

Baco Push Buttons

All actuators have matt chromed bezels and ingress protection to IP65 as standard. Contact blocks, LED modules and transformers can all be purchased separately.

Push Button Heads Spring Return

22mm cut out diameter
Spring return, flush
To be used with a clip and electrical contact blocks
Plastic chrome bezel
Equipped with locking ring
IP66 ingress protection

Baco Push Buttons

All actuators have matt chromed bezels and ingress protection to IP65 as standard. Contact blocks, LED modules and transformers can all be purchased separately.
