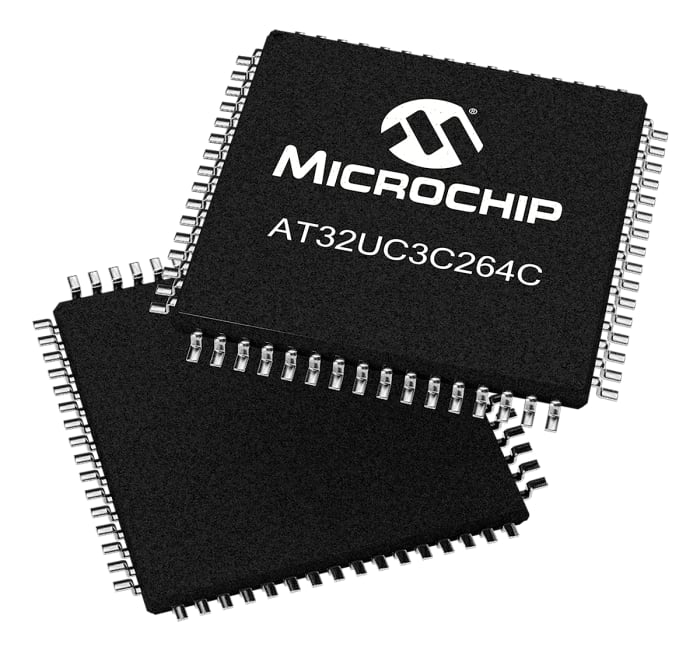

Atmel AT32UC3C264C-A2UT, 32bit AVR Microcontroller, AT32, 66MHz, 64 kB Flash, 64-Pin TQFP

RS Stock No.: 738-0148Brand: AtmelManufacturers Part No.: AT32UC3C264C-A2UT
brand-logo
View all in Microcontrollers

Technical documents

Specifications

Brand

Atmel

Family Name

AT32

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

AVR

Data Bus Width

32bit

Program Memory Size

64 kB

Maximum Frequency

66MHz

RAM Size

4 kB, 68 kB

USB Channels

1 x Host, 1 x OTG

Number of PWM Units

1

Number of SPI Channels

2

Number of USART Channels

5

Number of UART Channels

0

Number of I2C Channels

2

Typical Operating Supply Voltage

3.3 V, 5 V

Number of CAN Channels

2

Maximum Number of Ethernet Channels

1

Minimum Operating Temperature

-40 °C

Height

1.4mm

Number of LIN Channels

4

Dimensions

20 x 20 x 1.4mm

Program Memory Type

Flash

Number of Ethernet Channels

1

Number of PCI Channels

0

Instruction Set Architecture

DSP, RISC

Number of ADC Units

1

Maximum Operating Temperature

+85 °C

Length

20mm

ADCs

16 x 12 bit

Width

20mm

Pulse Width Modulation

4 x 20 bit
