Technical documents
Specifications
Brand

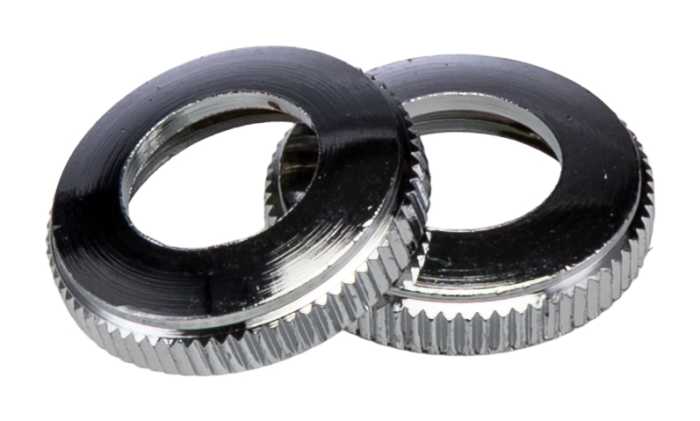

ApemAccessory Type
Cap Nut
For Use With
Push Button Switch
Material
Brass
Colour
Silver
Country of Origin
France
Product details
1200 Series Singel Push-Button, 12mm
From Apem, this 1200 series push-button switch is single pole with a momentary action and a low-resistance plunger style actuator. Panel mounting and featuring 0.250in faston terminals, this Apem switch is easy to install.
A push button boot (stock no: 103-6303) and chrome panel nut cap (stock no: 103-6319) are available separately.
Contact rating of 4A @ 250Vac, 8A @ 125Vac, 4A @ 24Vdc
Contact resistance of 10mΩ
Insulation resistance of 1000MΩ min. @ 500Vdc
Dielectric strength of 2000Vrms
Silver Contact material
Mechanical life of 10000 operations
Operating temperature of -20 to +55°C
Panel cut-out: 12.2mm dia.
Depth behind panel: 22mm
Bush thread M12 x 0.75
Chrome button version with conical panel "nut"
Stock information temporarily unavailable.
Please check again later.
₪ 19.438
Each (In a Pack of 5) (ex VAT)
₪ 22.742
Each (In a Pack of 5) (inc VAT)
5
₪ 19.438
Each (In a Pack of 5) (ex VAT)
₪ 22.742
Each (In a Pack of 5) (inc VAT)
5
Buy in bulk
quantity | Unit price | Per Pack |
---|---|---|
5 - 70 | ₪ 19.438 | ₪ 97.19 |
75+ | ₪ 19.256 | ₪ 96.28 |
