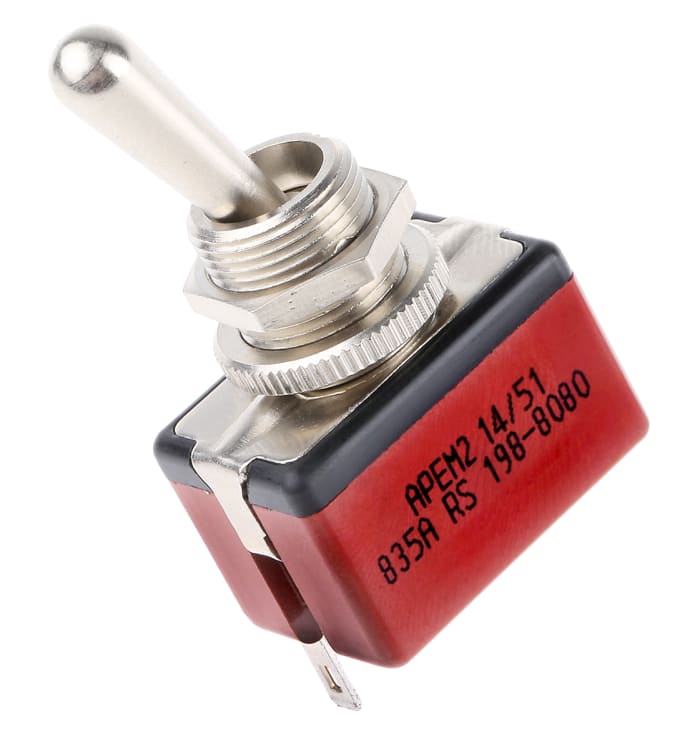

APEM Toggle Switch, Panel Mount, On-(On), SPST, Tab Terminal
Technical documents
Specifications
Brand
ApemContact Configuration
SPST
Switch Operation
On-(On)
Contact Current Rating
10 A@ 125-250 V ac
Mounting Type
Panel Mount
Terminal Type
Tab
Actuator Length
17.5mm
Actuator Material
Nickel Plated Brass
Contact Material
Silver Nickel Alloy
Contact Resistance
0.01Ω
Minimum Operating Temperature
-20°C
Operating Temperature Range
-20 → +55°C
Maximum Operating Temperature
+55°C
Country of Origin
France
Product details
Toggle Switches, Std, 15A Metal Lever
Single and double pole switches with a choice of flat insulated or nickel plated brass levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
Miniature Lockable Toggle Switches
Approvals
UL E187490
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
₪ 55.17
Each (ex VAT)
₪ 64.55
Each (inc VAT)
1
₪ 55.17
Each (ex VAT)
₪ 64.55
Each (inc VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 49 | ₪ 55.17 |
| 50 - 99 | ₪ 54.24 |
| 100 - 249 | ₪ 41.92 |
| 250+ | ₪ 40.85 |
