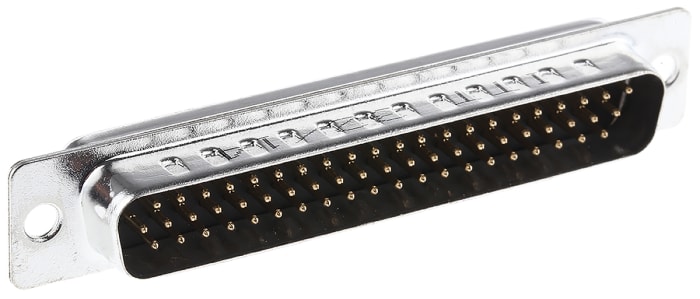

Amphenol Communications Solutions HD 62 Way Straight Panel Mount D-Sub Connector Male
Technical documents
Specifications
Number of Contacts
62
Product Type
D-Sub Connector
Current
3A
Orientation
Straight
Mount Type
Panel Mount
Connector Gender
Male
Connector Type D
D-Sub
D-Sub Shell Size
C
Housing Material
Steel
Voltage
250V
Minimum Operating Temperature
-55°C
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
105°C
Standards/Approvals
No
Series
HD
Contact Material
Brass
Contact Plating
Gold
Country of Origin
China
Product details
Amphenol SD Series High Density D-Sub Plug Connectors with Solder Cup Terminals
SD series high density D-Sub plug connectors with solder cup terminals and precision stamped and formed contacts. These SD series HD d-sub plug connectors have a tin plated steel shell with dimples, a glass-filled thermoplastic UL 94V-0 insulator with closed entry contact cavities, gold flash plated pin contacts and 3.05 holes for front mounting. Typical applications for these SD series high density d-sub plug connectors include industrial, telecom and any industry standard I/O applications.
Standards
Connectors according to: MIL C24308 - NFC 93425-HE5
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 22.24
₪ 22.24 Each (ex VAT)
₪ 26.02
₪ 26.02 Each (inc. VAT)
1
₪ 22.24
₪ 22.24 Each (ex VAT)
₪ 26.02
₪ 26.02 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 9 | ₪ 22.24 |
| 10 - 19 | ₪ 21.75 |
| 20+ | ₪ 20.28 |
