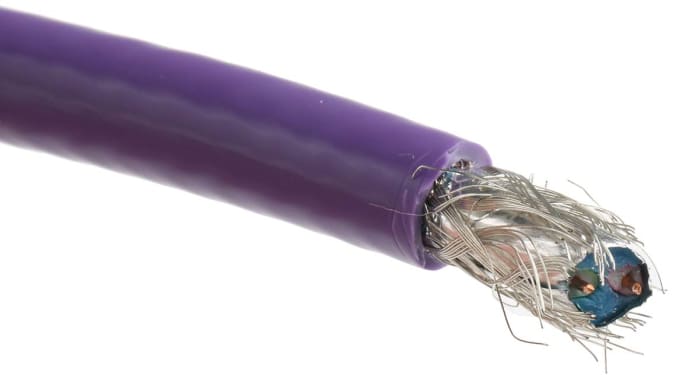

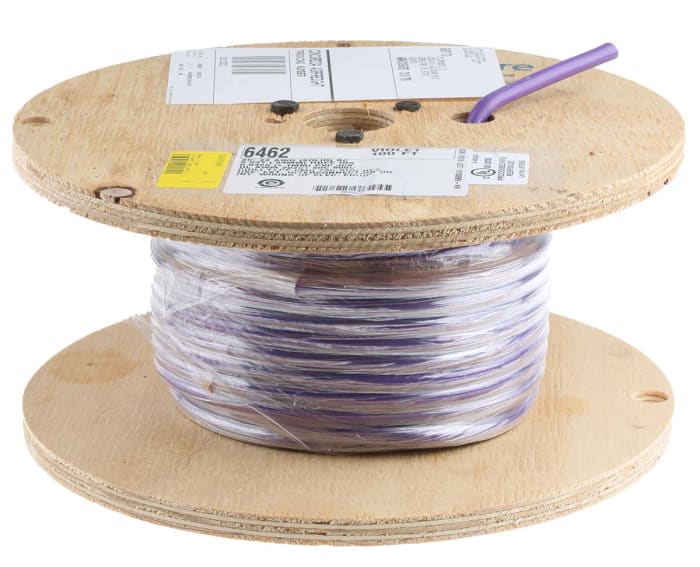

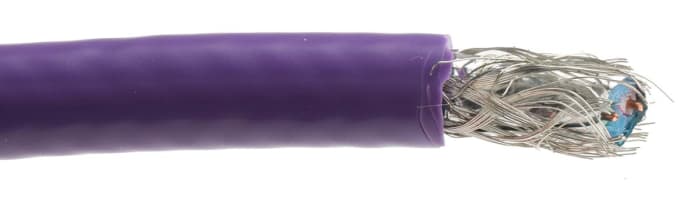

Alpha Wire Alpha Essentials Data & Bus Cable Series Data Cable, 1 Pairs, 0.32 mm², 30 m, Purple Sheath Polyvinyl

Name: Alpha Wire Alpha Essentials Data & Bus Cable Series Data Cable, 1 Pairs, 0.32 mm², 30 m, Purple Sheath Polyvinyl
Brand: Alpha Wire
SKU: 7491589
Availability: LimitedAvailability

RS Stock No.: 749-1589Brand: Alpha WireManufacturers Part No.: 6462 VI005Distrelec Article No.: 30401647

View all in Twisted Pair & Multicore Data Cable

Technical Documents

Specifications

Brand

Alpha Wire

Number of Pairs

Product Type

Data Cable

Cross Sectional Area

0.32mm²

Cable Length

30m

Jacket Colour

Purple

Outside Diameter

8mm

Minimum Operating Temperature

-30°C

Jacket Material

Polyvinyl Chloride

Maximum Operating Temperature

75°C

Standards/Approvals

CE, CSA, UL

Core Strands

Fire Behaviour

Flame Resistant

Conductor Material

Tin Copper Wire

Series

Alpha Essentials Data & Bus Cable

Voltage

300V

Product Details

Alpha Wire 300 V Single-Pair PROFIBUS-DP Cable

Offering industry-leading mechanical and electrical performance for the major industrial automation protocols, including ControlNet, RS-485, DeviceNet, Fieldbus, PROFIBUS and Industrial Twinax. With multiple configurations, the Alpha Wire data cable range is sure to meet the needs of your demanding applications.
Suitable for use with FIT-221 and FIT-321 heat-shrink tubing.

Features and Benefits

Operating Temperature: -30°C to +75°C (PLTC, CMG), -30° to +60°C (AWM)
Red-Green conductor colour coding
Tinned copper conductors
Foam high-density polyethelene insulation
Foil and tinned copper braided shielding
Purple PVC jacket
UL sunlight resistant

Standards and Approvals

UL AWM 20201 (6462 only), UL PLTC, UL CMG, CSA CMG FT4

View all in Twisted Pair & Multicore Data Cable

Stock information temporarily unavailable.

₪ 1,207.95

₪ 1,207.95 1 Reel of 30 Metres (ex VAT)

₪ 1,413.30

₪ 1,413.30 1 Reel of 30 Metres (inc. VAT)

Alpha Wire Alpha Essentials Data & Bus Cable Series Data Cable, 1 Pairs, 0.32 mm², 30 m, Purple Sheath Polyvinyl

₪ 1,207.95

₪ 1,207.95 1 Reel of 30 Metres (ex VAT)

₪ 1,413.30

₪ 1,413.30 1 Reel of 30 Metres (inc. VAT)

Alpha Wire Alpha Essentials Data & Bus Cable Series Data Cable, 1 Pairs, 0.32 mm², 30 m, Purple Sheath Polyvinyl

Stock information temporarily unavailable.

quantity	Unit price
1 - 4	₪ 1,207.95
5 - 9	₪ 1,182.96
10+	₪ 1,155.48

Technical Documents

Specifications

Brand

Alpha Wire

Number of Pairs

Product Type

Data Cable

Cross Sectional Area

0.32mm²

Cable Length

30m

Jacket Colour

Purple

Outside Diameter

8mm

Minimum Operating Temperature

-30°C

Jacket Material

Polyvinyl Chloride

Maximum Operating Temperature

75°C

Standards/Approvals

CE, CSA, UL

Core Strands

Fire Behaviour

Flame Resistant

Conductor Material

Tin Copper Wire

Series

Alpha Essentials Data & Bus Cable

Voltage

300V

Product Details

Alpha Wire 300 V Single-Pair PROFIBUS-DP Cable

Features and Benefits

Standards and Approvals

UL AWM 20201 (6462 only), UL PLTC, UL CMG, CSA CMG FT4
