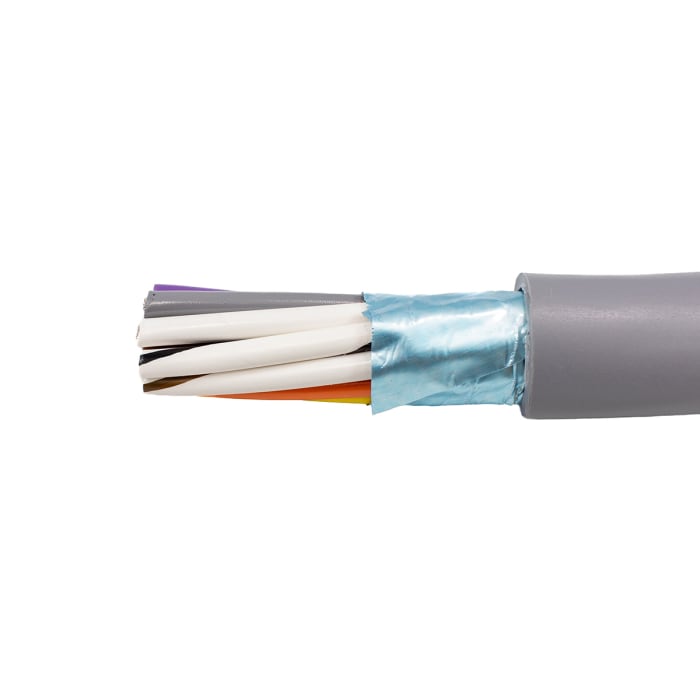

Alpha Wire Alpha Essentials Communication & Control Control Cable, 15 Cores, Screened, 305m, Grey PVC Sheath, 24 AWG

RS Stock No.: 187-2034Brand: Alpha WireManufacturers Part No.: 6307 SL001
brand-logo
View all in Control Cable

Technical documents

Specifications

Brand

Alpha Wire

Series

Alpha Essentials Communication & Control

Number of Cores

15

American Wire Gauge

24 AWG

Conductor Material

Tinned Copper

Sheath Material

PVC

Sheath Colour

Grey

Screened/Unscreened

Screened

Screen Type

Aluminium Foil

Outer Diameter

7.26mm

Length

305m

Minimum Bend Radius

10 x Cable Diameter

Voltage Rating

300 V

Maximum Operating Temperature

+80°C

Conductor Resistance

26 Ω

Core Strands

7/32 AWG

Drain Wire

Yes

Minimum Operating Temperature

-20°C

Insulation material

PVC

₪ 7,704.30

₪ 25.26 Each (ex VAT)

₪ 9,014.03

₪ 29.554 Each (inc. VAT)

Alpha Wire Alpha Essentials Communication & Control Control Cable, 15 Cores, Screened, 305m, Grey PVC Sheath, 24 AWG

305

Available in multiples of 305
305₪ 7,704.30
610₪ 15,408.60
915₪ 23,112.90
1220₪ 30,817.20
1525₪ 38,521.50
1830₪ 46,225.80
2135₪ 53,930.10
2440₪ 61,634.40
2745₪ 69,338.70
3050₪ 77,043.00
3355₪ 84,747.30
3660₪ 92,451.60
3965₪ 100,155.90
4270₪ 107,860.20
4575₪ 115,564.50

₪ 7,704.30

₪ 25.26 Each (ex VAT)

₪ 9,014.03

₪ 29.554 Each (inc. VAT)

Alpha Wire Alpha Essentials Communication & Control Control Cable, 15 Cores, Screened, 305m, Grey PVC Sheath, 24 AWG

Stock information temporarily unavailable.

305

Available in multiples of 305
305₪ 7,704.30
610₪ 15,408.60
915₪ 23,112.90
1220₪ 30,817.20
1525₪ 38,521.50
1830₪ 46,225.80
2135₪ 53,930.10
2440₪ 61,634.40
2745₪ 69,338.70
3050₪ 77,043.00
3355₪ 84,747.30
3660₪ 92,451.60
3965₪ 100,155.90
4270₪ 107,860.20
4575₪ 115,564.50

Stock information temporarily unavailable.

Technical documents

Specifications

Brand

Alpha Wire

Series

Alpha Essentials Communication & Control

Number of Cores

15

American Wire Gauge

24 AWG

Conductor Material

Tinned Copper

Sheath Material

PVC

Sheath Colour

Grey

Screened/Unscreened

Screened

Screen Type

Aluminium Foil

Outer Diameter

7.26mm

Length

305m

Minimum Bend Radius

10 x Cable Diameter

Voltage Rating

300 V

Maximum Operating Temperature

+80°C

Conductor Resistance

26 Ω

Core Strands

7/32 AWG

Drain Wire

Yes

Minimum Operating Temperature

-20°C

Insulation material

PVC
