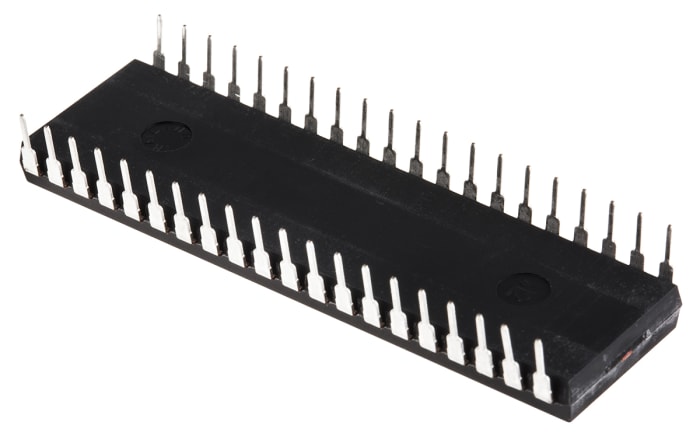

Microchip PIC18F458-I/P, 8bit PIC Microcontroller, PIC18F, 40MHz, 32 kB, 256 B Flash, 40-Pin PDIP
Technical documents
Specifications
Brand
MicrochipFamily Name
PIC18F
Package Type
PDIP
Mounting Type
Through Hole
Pin Count
40
Device Core
PIC
Data Bus Width
8bit
Program Memory Size
32 kB, 256 B
Maximum Frequency
40MHz
RAM Size
1.536 kB
USB Channels
0
Number of PWM Units
2 x 10 bit
Number of SPI Channels
1
Number of USART Channels
1
Number of UART Channels
0
Number of I2C Channels
1
Typical Operating Supply Voltage
4.2 → 5.5 V
Number of CAN Channels
1
Height
4.06mm
Number of LIN Channels
0
Dimensions
52.45 x 14.22 x 4.06mm
Program Memory Type
Flash
Number of Ethernet Channels
0
Number of PCI Channels
0
Minimum Operating Temperature
-40 °C
Instruction Set Architecture
RISC
Width
14.22mm
Pulse Width Modulation
1 (10 bit) (CCP), 1 (10 bit) (ECCP)
Number of ADC Units
1
Maximum Operating Temperature
+85 °C
Length
52.45mm
ADCs
8 x 10 bit
Product details
PIC18F248/258/448/458 8-Bit Flash Microcontrollers
