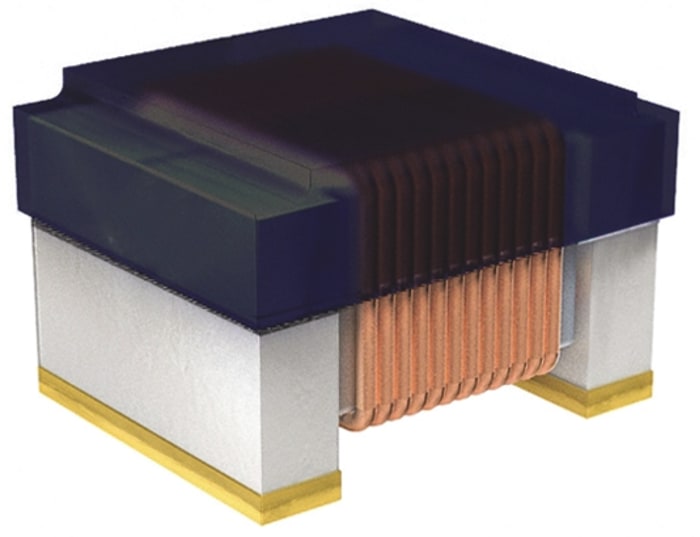

EPCOS, SIMID, 0805 (2012M) Shielded Wire-wound SMD Inductor with a Ferrite Core, 680 nH ±5% Wire-Wound 250mA Idc Q:20

RS Stock No.: 801-9670Brand: EPCOSManufacturers Part No.: B82498B1681J000
brand-logo
View all in Surface Mount Inductors

Technical documents

Specifications

Brand

Epcos

Inductance

680 nH

Maximum dc Current

250mA

Package/Case

0805 (2012M)

Length

2.2mm

Depth

1.45mm

Height

1.4mm

Dimensions

2.2 x 1.45 x 1.4mm

Shielded

Yes

Tolerance

±5%

Maximum DC Resistance

500mΩ

Series

SIMID

Core Material

Ferrite

Maximum Self Resonant Frequency

450MHz

Minimum Quality Factor

20

Inductor Construction

Wire-Wound

Maximum Operating Temperature

+85°C

Country of Origin

Germany
